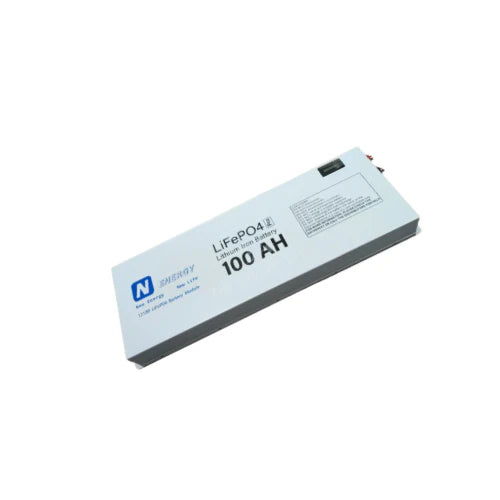

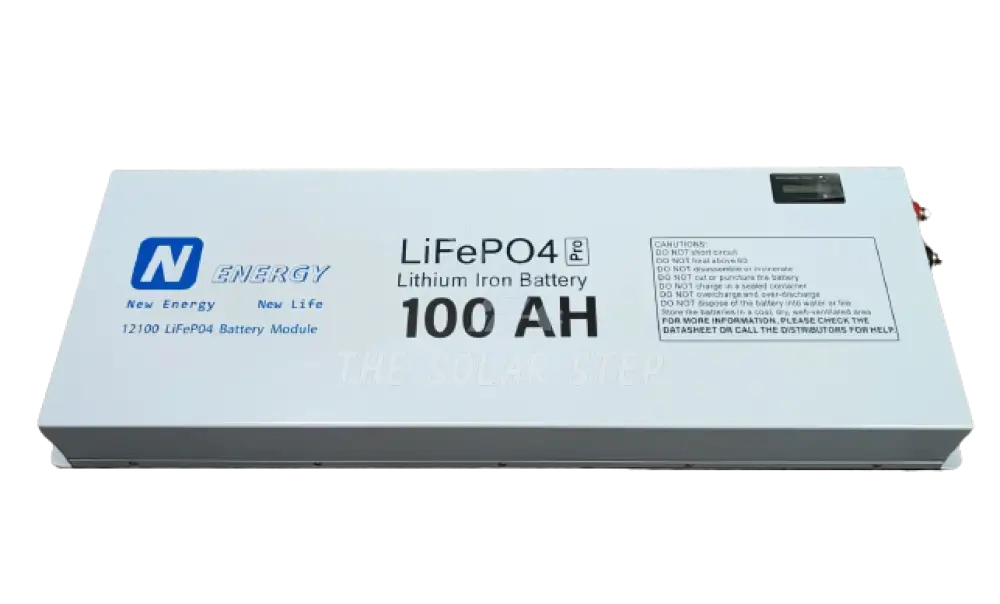

12V 100AH 1.28kWh Solarix N-Energy LiFePo4 LITHIUM Battery

12V 100Ah Osaka Lithium Iron Phosphate (LiFePO₄) Deep Cycle Battery

Overview:
The Solarix Nenergy 12V 100Ah LiFePO₄ Single Battery Module is a high-performance, wall-mountable solution designed to replace traditional Lead-Acid, AGM, or Gel batteries. With 1.28 kWh of usable energy, it is ideal for small to medium residential or office solar installations. Engineered with low internal resistance and robust continuous high-current discharge performance, this LiFePO₄ battery ensures reliability and long service life.

Key Features:

• Wall-Mount Design: Compact and standalone for easy installation, compatible with 12V hybrid inverters up to 2kVA.

• High-Performance LiFePO₄ Cells: Offers low internal resistance and excellent high-current discharge capability.

• Long Lifecycle: Over 2,000 cycles at 80% DOD, with design life of approximately 10 years.

• Built-In Protection: Safeguards against over-charge, over-discharge, and over-temperature conditions.

• Efficient Energy Storage: Total usable energy of 1.28 kWh, rated capacity of 100Ah, nominal voltage of 12.8V.

Specifications:

• Stock Code: SOLNE12V100AH

• Nominal Voltage: 12.8V

• Rated Capacity: 100Ah

• Total Usable Energy: 1.28 kWh

• Maximum Continuous Charging Current: 20A

• Maximum Continuous Discharging Current: 50A

• Working Voltage Range: 11.6V – 14.6V

• Cell Type: New Li-Ion Prismatic Cells

• Cycle Life: ~1,000 cycles @ 100% DOD; >2,000 cycles @ 80% DOD

• Design Life: ~10 years

• Dimensions (L × W × H): 72 × 7 × 25 cm

• Weight: 9.5 kg

Usage Notes:

• Designed for continuous use in small to medium solar setups.

• Not suitable for engine starting or extremely high current draw applications.

• Wall-mountable form factor allows for space-efficient installation.

Top 5 Reasons to Choose Solarix Nenergy 12V 100Ah LiFePO₄:

1. Perfect for small to medium residential or office installations.

2. Low internal resistance with excellent continuous high-current discharge.

3. Long lifecycle of over 2,000 cycles at 80% DOD.

4. Built-in protection against over-charge, over-discharge, and over-temperature.

5. Designed for seamless integration with 12V hybrid inverters up to 2kVA.

Warranty:

• 6-month repair warranty.

• Installation must be completed by a qualified electrical wireman or Master electrician registered with the Department of Labour.

• A valid certificate of compliance (COC) is required for the specific backup or solar system installation.

• Compliance with SANS 10142 is mandatory. Warranty claims without installation photos, a valid COC, or proof of qualified installation may be rejected.
